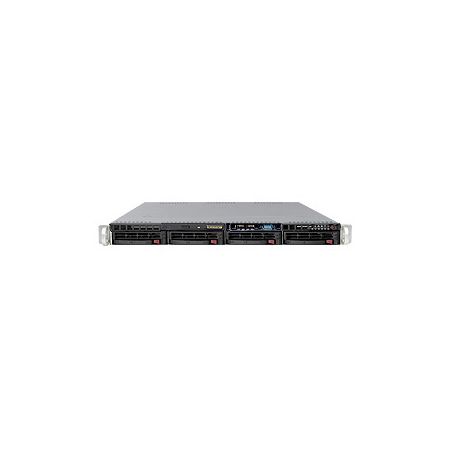

Supermicro SuperServer 5016I-MT Barebone System Item # 964549
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
964549
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
It is designed for applications that require the highest performance at the best price/performance/watt. It delivers additional levels of performance, power-efficiency and reliability.
Product Details
| Item # | 964549 |
| Manufacturer # | 10549112 |
| Ethernet Technology | Gigabit Ethernet |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 280 W |
| height | 1.7 in |
| Additional Information | Memory Detail:Supports up to 48 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM sockets; Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMM sockets; Storage Controller Detail:Serial ATA Controller supports RAID 0, 1, 10 for Linux; Serial ATA Controller supports RAID 0, 1, 5, 10 for Windows |
| Total Number of USB Ports | 2 |
| Graphics Controller Manufacturer | Matrox |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 5016I-MT Barebone System; 1 x Super X8SIE Motherboard; 1 x 1U Chassis; 1 x BPN-SAS-815TQ-O-P Backplane; 1 x 8pin to 8pin ribbon cable with tube for SGPIO, 40cm, PBF; 1 x SATA SET OF 4-56/45.5/35/23CM ROUND S-RA; 1 x 70cm, internal USB cable for slim USB DVD ROM; 1 x CDM-USATA-G-O-PPeripheral Drive; 1 x Black slim SATA DVD, Panasonic; 1 x Black slim SATA DVD, TEAC; 1 x DRIVER CD FOR X8 UP MOTHERBOARD; 1 x RISER CARD 1U PCI-E 16X TO 16X; 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156 |
| Graphics Memory Capacity | 16 MB |
| depth | 19.8 in |
| Product Name | SuperServer 5016I-MT Barebone System |
| Number of PCI Express x16 Slots | 1 |
| Rack Height | 1U |
| manufacturer | Supermicro Computer, Inc |
| Number of 3.5" Bays | 4 |
| VGA | Yes |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 1 |
| Maximum Memory | 48 GB |
| controller type | Serial ATA/300 |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 2 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1333/PC3-10600 |
| Power Factor Correction | Yes |
| Graphics Memory Technology | DDR2 SDRAM |
| Number of Power Supplies Installed | 1 |
| Number of Total Expansion Slots | 1 |
| Processor Socket | Socket H LGA-1156 |
| Chipset Model | 3400 |
| Number of Total Expansion Bays | 4 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200eW |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | PC3-6400 - 32 GB - registered ¦ PC3-8500 - 32 GB - registered ¦ PC3-10600 - 32 GB - registered ¦ PC3-6400 - 16 GB - unbuffered ¦ PC3-8500 - 16 GB - unbuffered ¦ PC3-10600 - 16 GB - unbuffered |
| color | black |
| warranty length | 3-year limited |
| model name | 5016I-MT |
